RAPID® CS
Countersinks fully into the timber and fits well in steel bores
Countersunk head
Ø 3.0 x 16 to 45 mm
Ø 3.5 x 16 to 50 mm
Ø 4.0 x 20 to 70 mm
Ø 4.5 x 20 to 80 mm
Ø 5.0 x 20 to 120 mm
Ø 6.0 x 50 to 300 mm
Ø 8.0 x 80 to 500 mm
Ø 10.0 x 80 to 500 mm
Ø 12.0 x 100 to 400 mm
Certifications
ETA 12/0373 and UKCA
Exceptions:
- Ø 3.0 and Ø 3.5 mm Length ≥ 30 mm: CE according to EN 14592 without UKCA
- Ø 3.0 to Ø 5.0 mm Length < 30 mm: without CE and UKCA
Features
Minimised effort
- With hardwood screw development innovations
- Significantly reduced turning resistance from the friction part
- Longer battery life for screwdriver
Fastest screwing processes
- Dual thread with high and low flanks
- Accelerated screwing proceesses save time - compared to conventional wood construction screws.
- The highest technical values guarantee a secure hold, even for oblique and cross grained wood screw connections
Low splitting, little resistance
- The wavy profile on the flanks reduces splitting and screw-in resistance thanks to the cutting function
Patented tip - no pre-drilling necessary!
- Self-drilling tip with ridged core
- Saves time by biting precisely and instantly, even with oblique and cross grained wood screw connections
- Much less splitting and lower screw- in resistance compared to conventional wood construction screws

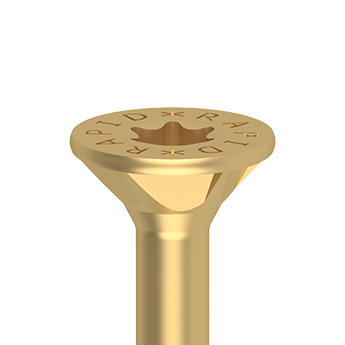

Milling pockets

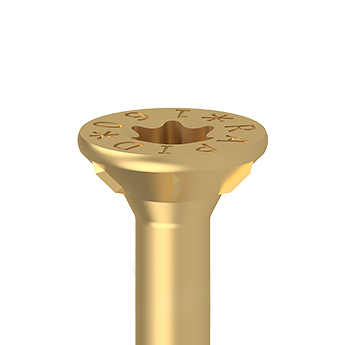

Milling ribs

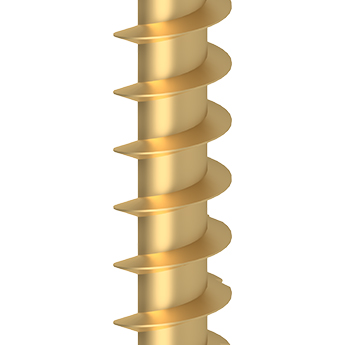

HiLo thread
Single thread
Surface
YellWin 500+
Thick-film passivation, yellow
- Cr[VI] free
- Anti-friction coating
Other surfaces or production in stainless steel possible on request.
RAPID® CS carpenter line
With the carpenter line, we offer our own range which uses the same bit size across four diameters - T20.
This makes frequent bit changes a thing of the past. So you can work even faster and more efficiently.
- Ø 3.5 x 16 to 50 mm
- Ø 4.0 x 20 to 70 mm
- Ø 4.5 x 20 to 80 mm
- Ø 5.0 x 20 to 120 mm
Application: RAPID® partial thread
Doubling Rafters: Doubling for reinforcement is usually done on the top or side of the rafter.
Rafters: Partial thread screws transfer the wind suction load and shear forces to the substructure through the screw heads.
CLT walls and ceilings: Cross-Laminated-Timber (CLT) - ceiling panel screwed to the walls with RAPID® SuperSenkFix. Schmid screws are approved for all applications in side and end wood (0° and 90°) as well as CLT side faces and narrow edges.
Corner and wall screw connections are pulled tightly together and securely screwed with RAPID® SuperSenkFix.
