Certifications
ETA 12/0373 and UKCA
ICC-ES Evaluated Ø 12,0 mm
Features
Flexible tool selection

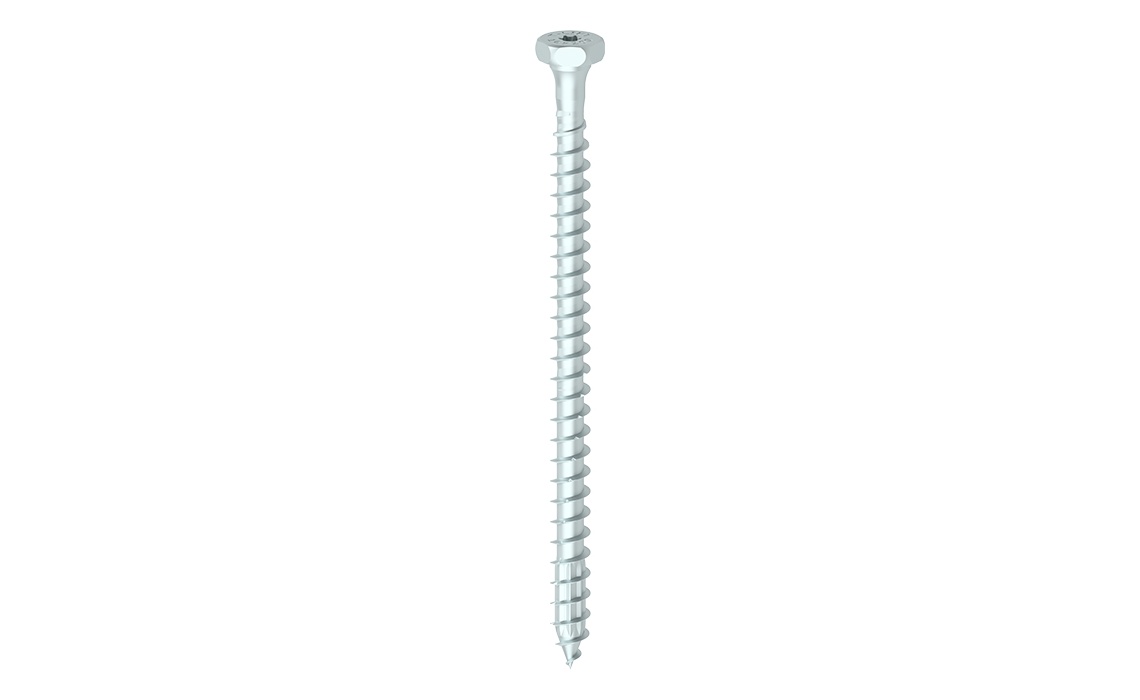

- Dual head (hexagonal and T-slot) offers flexible screwing
- Reinforced area under the head with optimal fitting for reliable force transfer
High pull-out forces and low splitting
- Sharply rolled out thread flanks for a minimised splitting, fast screwing in and very high pull-out forces
Patented follower thread tip - no pre-drilling necessary!
- Patented compressor tip for a quick bite with reduced screwing torque
- Suitable for cordless screwdrivers
Surface: BlueWin
- Passivation, blue
- Cr[VI] free
- Anti-friction coating
Areas of application
- Used in constructive timber work as a lifting system for prefabricated roofs, walls and ceilings, in timber frame construction for the prefab house industry, solid wood boards, cross laminated timber and the like
- RAPID® T-Lift is suitable for cross-laminated timber, solid wood, coniferous woodbased materials (OSB, LVL etc.). For deciduous woods, we recommend using screws, pre-drilled
- Can be used for axial loads (screw subjected to tension) and transverse loads (screw subjected to shear-off stress)
Application information

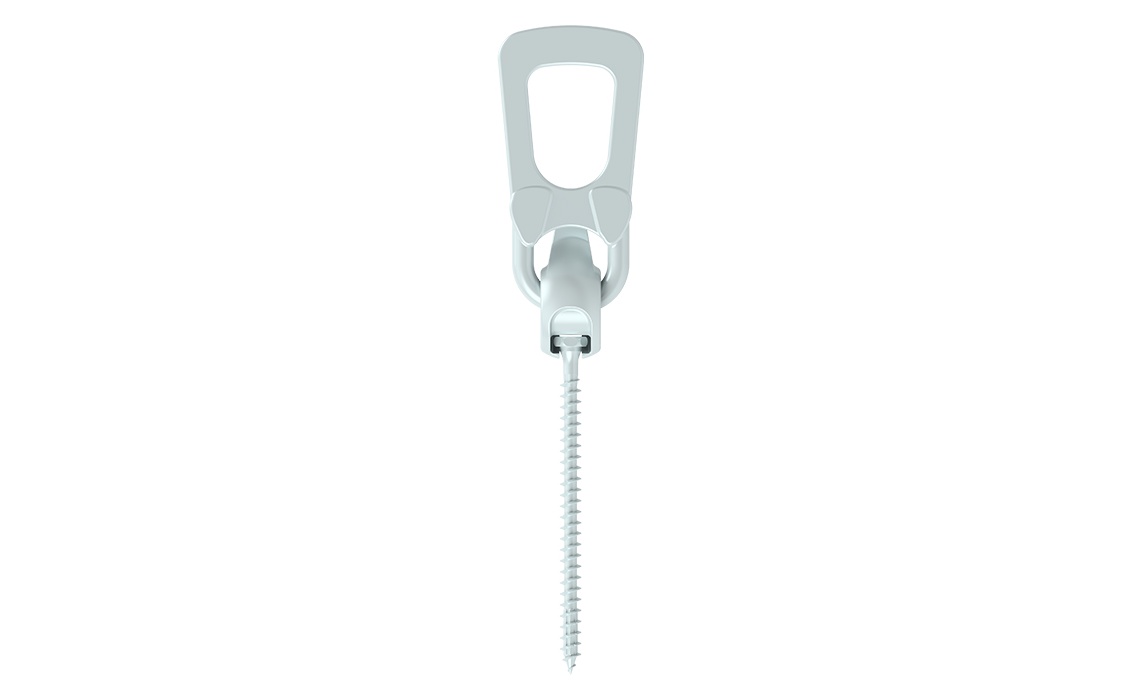

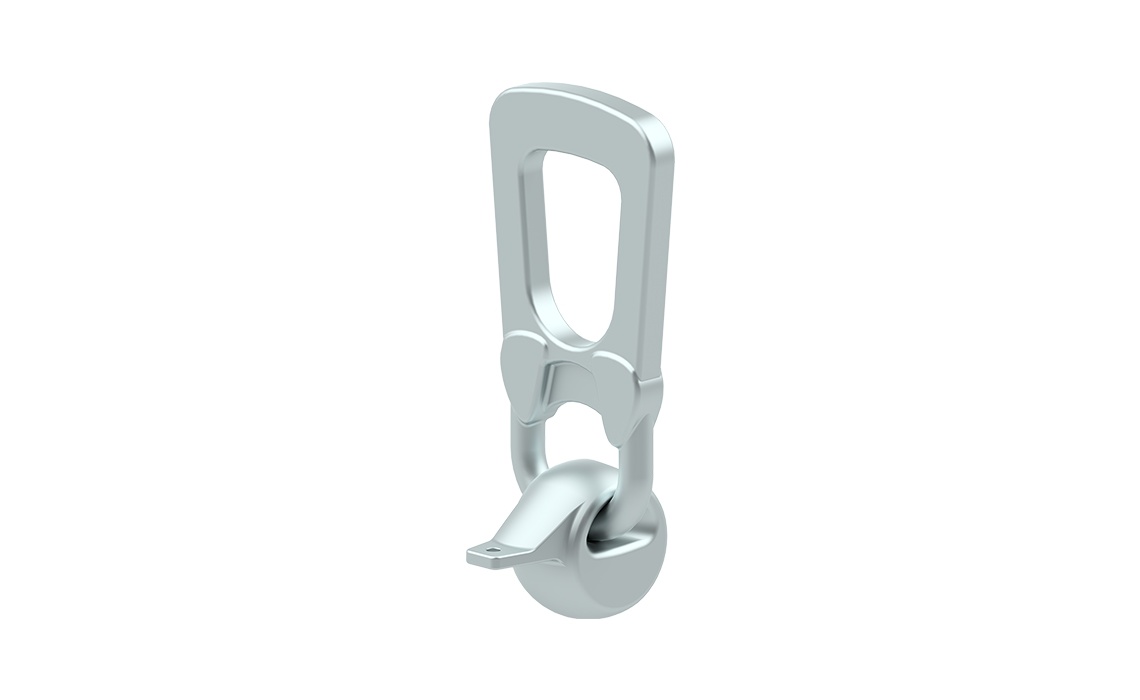

- The RAPID® T-Lift sperical head anchor for the load group up to 1.3 t or up to 2.5 t may only be used with the self-drilling RAPID® T-Lift screw certified under ETA-12/0373, ø 12 mm or ø 16 mm
- The weight of the components to be lifted must be known and must not exceed the calculated screw load bearing capacity
- Screws may not be screwed into drying cracks or the like
- Screw-in angle in the timber: 0 - 90°
Safety information
- For safety reasons, the screws should only be used once
- The entire component must be lifted with at least two screws
- RAPID® T-Lift must be checked for damage before each use
- The lifting system must be checked by an expert/safety officer from the user company at least once a year. The degree of wear and tear in particular should be determined, in addition to damage of all kinds
- Modifications and repairs, especially welding, on the lifting system are not permitted
- The lifting system complies to the EC Machinery Directive 2006/42/EC, Annex II 1A (EN 13001-1, EN ISO 12100:2011-03, VDI/BV-BS 6205:2012-04). Production is externally approved and monitored
